SKU No : 101111098

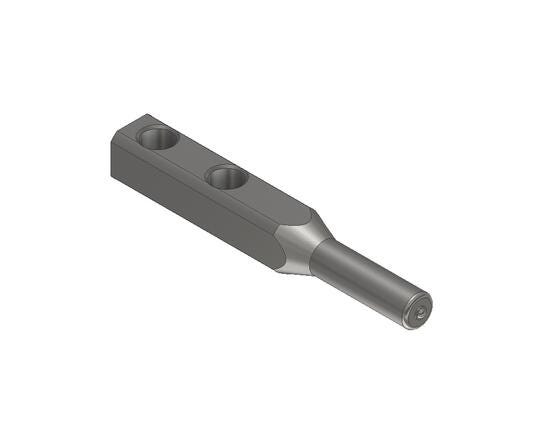

XXL 3/4 X 3 9/16 MS 2 HOLE
Product description :
XXL 3/4 X 3 9/16 MS 2 HOLE
Technical Specifications
| Property | Specification |
|---|---|
Height | 0.75 inches |
Width | 0.75 inches |
Length | 3.5625 inches |
Weight | 0.34 Lb |
Brand | Nelson |
Material (O) | Low Carbon Steel |
Stud Dia | 0.75 inches |
Weld Base Dia | 0.5 inches |
Head Dia | 0.74 inches |
Overall Length | 3.5625 inches |
Burn Off | 0.187 inches |
Base Length | 4.812 |
Tap Size | 0.390 inches |
Tap Length | 1 inches |
Flash Dia | 0.67 inches |
Flash Thickness | 0.156 inches |
Nr of Holes | 2.0 |
Related Ferrule | 100101259.0 |
Related Chuck | 500007035.0 |
Related Grip | 501001014.0 |
Related Foot | 502001138.0 |
Related HD Foot | 502001002.0 |
