SKU No : 101045817

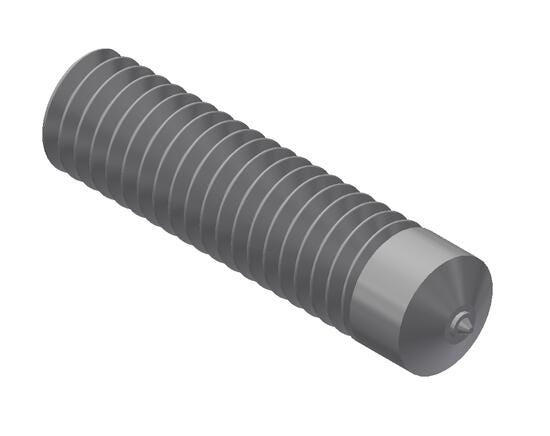

HBL M16 X 90.0MM MS 50.0MM THD

Product description :

HBL M16 X 90.0MM MS 50.0MM THD

Technical Specifications

PropertySpecification
Height
16 mm
Width
16 mm
Length
90 mm
Weight
0.32 Lb
Brand
Nelson
Material (O)
Low Carbon Steel
Stud Dia
16 mm
Weld Base Dia
16 mm
Overall Length
90 mm
Weld Base Length
9.2 mm
Burn Off
4 mm
Thread Size
M16 metric
Flash Dia
18 mm
Flash Thickness
6 mm
Related Ferrule
100101187.0
Related Chuck
500001016.0
Related Grip
501001014.0
Related Foot
502001138.0
Related HD Foot
502001002.0
