Nelson Stud Welding
Externally Threaded

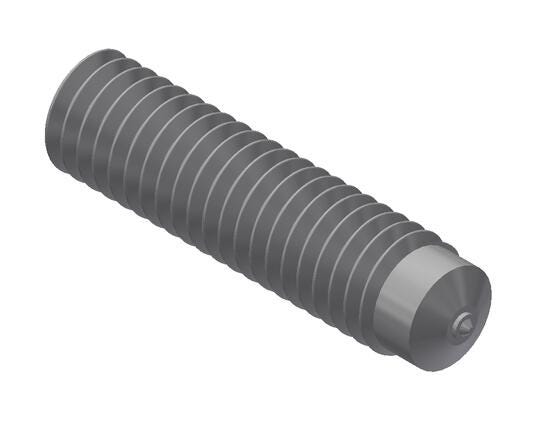

FFP - Fine Threads, Fully Threaded,Pointed Weld Base
FFP 10-32 X 1 MS 5/8 KO A
SKU No
:
101031027
FFP 10-32 X 1 MS 5/8 KO A
Product description :
FFP 10-32 X 1 MS 5/8 KO A
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
0.187 inches
Height
0.187 inches
Width
Brand
1 inches
Length
0.005 Lb
Weight
Low Carbon Steel
Material (O)
Stud Dia
0.187 inches
Weld Base Dia
0.16 inches
Overall Length
1 inches
Burn Off
0.062 inches
Thread Size
10-32 UN/UNF
Flash Dia
0.281 inches
Flash Thickness
0.093 inches
Related Ferrule
100101003.0
Related Chuck
500001005.0
Related Grip
501001004.0
Related Foot
502001137.0
Related HD Foot
502001001.0
