SKU No : 101010002

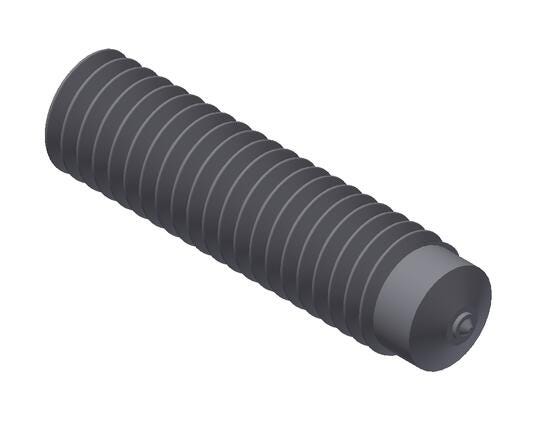

CFL 1/4-20 X 5/8 MS

Product description :

CFL 1/4-20 X 5/8 MS

Technical Specifications

PropertySpecification
Height
0.25 inches
Width
0.25 inches
Length
0.625 inches
Weight
0.007 Lb
Brand
Nelson
Material (O)
Low Carbon Steel
Stud Dia
0.25 inches
Weld Base Dia
0.215 inches
Overall Length
0.625 inches
Weld Base Length
0.142 inches
Burn Off
0.125 inches
Thread Size
1/4-20 UN/UNF
Flash Dia
0.359 inches
Flash Thickness
0.109 inches
Related Ferrule
100101077.0
Related Chuck
500001007.0
Related Grip
501001005.0
Related Foot
502001137.0
Related HD Foot
502001001.0
