SKU No : 101006146

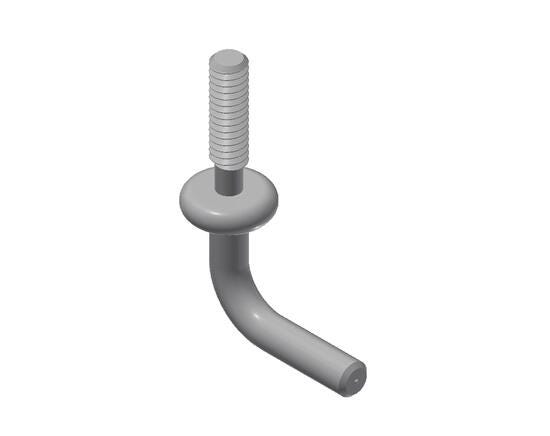

B5L 3/8 X 4 HY80 1 1/2 EXT ID
Product description :
B5L 3/8 X 4 HY80 1 1/2 EXT ID
Technical Specifications
| Property | Specification |
|---|---|
Height | 0.625 inches |
Width | 2 inches |
Length | 4.3125 inches |
Weight | 0 Lb |
Brand | Nelson |
Material (O) | HY80 Steel |
Stud Dia | 0.375 inches |
Weld Base Dia | 0.375 inches |
Collar Dia | 0.625 inches |
Head Thickness | 0.1 inches |
Burn Off | 0.125 inches |
Base Length | 4 inches |
Extension | 1.25 inches |
Bend Radius | 0.218 inches |
Bend Angle | 90.0 |
Thread Size | 3/8/-16 UN/UNF |
Thread Length | 0.562 inches |
Related Ferrule | 100101101.0 |
Related Chuck | 500009012.0 |
Related Foot | 501006007.0 |
