SKU No : 101006139

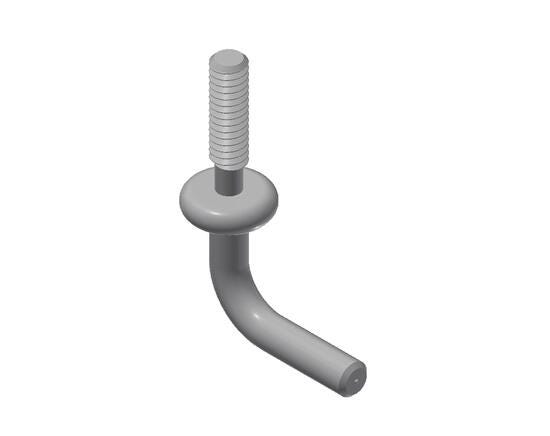

B5L 3/8 X 3 HY80 1 1/2 EXT ID A

Product description :

B5L 3/8 X 3 HY80 1 1/2 EXT ID A

Technical Specifications

PropertySpecification
Height
0.625 inches
Width
2 inches
Length
3.3125 inches
Weight
0.173 Lb
Brand
Nelson
Material (O)
HY80 Steel
Stud Dia
0.375 inches
Weld Base Dia
0.375 inches
Collar Dia
0.625 inches
Head Thickness
0.1 inches
Burn Off
0.125 inches
Base Length
3 inches
Extension
1.25 inches
Bend Radius
0.218 inches
Bend Angle
90.0
Thread Size
3/8/-16 UN/UNF
Thread Length
0.562 inches
Related Ferrule
100101101.0
Related Chuck
500009012.0
Related Foot
501006007.0
