Blind FasteningNon-StructuralAvinoxAVDEL 4.8mm [3/16] Stainless Steel / Stainless Steel Avinox Rivets
SKU No : 0BE61-00611

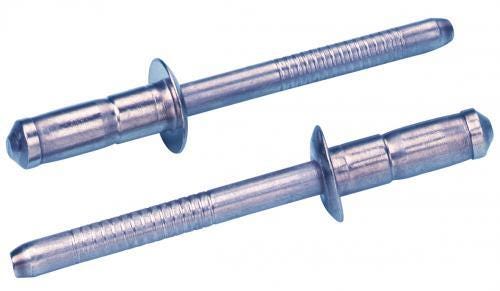

AVDEL 4.8mm [3/16] Stainless Steel / Stainless Steel Avinox Rivets

Product description :

1.5-3.5 mm Grip with 4.8 mm Nominal Diameter in Dome Head Style with Stainless Steel Body Material and Stainless Steel Mandrel Material

Technical Specifications

PropertySpecification
Product name
1.5 - 3.5 Grip in Stainless Steel/Stainless Steel, Avinox Non-Structural Blind Rivets
Nominal Diameter mm
4.8
Nominal Diameter Inches
4.8mm [3/16]
Body Material
Stainless Steel
Mandrel Material
Stainless Steel
Finish-Body
Polished
Finish- Mandrel
None
Head Style
Dome
Min grip mm
1.5
Max grip mm
3.5
Min Grip Inches
0.05905511811023623
Max Grip Inches
0.1377952755905512
Min Hole Size mm
4.9
Max Hole Size mm
5.1
Min Holes Size Inches
0.19291338582677167
Max Hole Size Inches
0.20078740157480315
Max Secondary Protrusion mm
12.8
Max Secondary Protrusion Inches
0.5039370078740159
Flange Diameter mm Max
9.6
Flange Diameter inches Max
0.3779527559055118
Flange Thickness mm Max
1.5
Shear kN
5.5
Tensile kN
5.0
