SKU No : 09654-70819

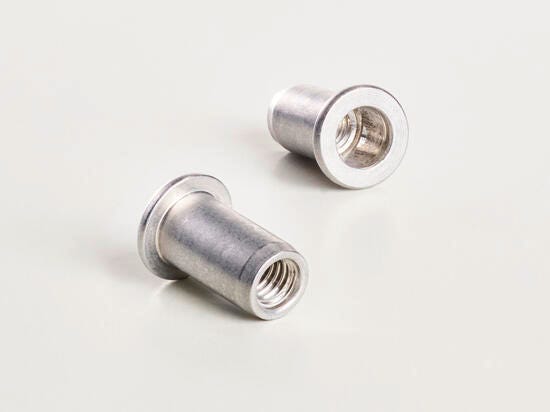

0.76 - 3.25 mm Steel Nutsert Rivet Nuts
Product description :
Nutsert Steel 0.76 - 3.25 mm Low Profile Round Rivet Nuts
Technical Specifications
| Property | Specification |
|---|---|
Description | 0.76 - 3.25 mm Low Profile Round Steel Nutsert Rivet Nuts |
Product family | Nutsert |
Material | Steel |
Open / Closed | Open |
Head Style | Low Profile |
Body Style | Round |
Thread | 1/4 |
Min grip mm | 0.76 |
Max grip mm | 3.25 |
Min Grip Inches | 0.03 |
Max Grip Inches | 0.128 |
Min Hole Size mm | 9.53 |
Max Hole Size mm | 9.61 |
Min Hole Size Inches | 0.375 |
Max Hole Size Inches | 0.3785 |
Max Body Length mm | 14.6 |
Nominal Body Length mm | 0.575 |
Max Flange Diameter mm | 10.67 |
