SKU No : 09498-72620
0.5 - 3 mm Steel Hexsert Rivet Nuts
Product description :

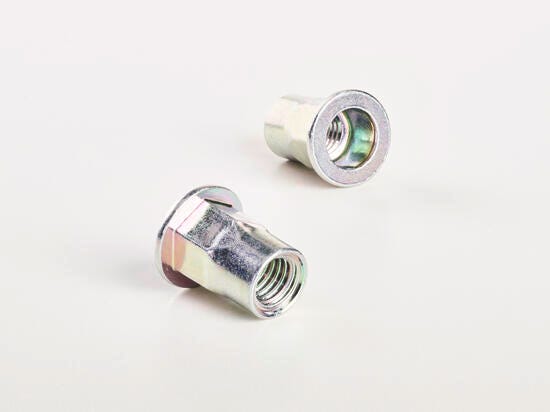

Hexsert Steel 0.5 - 3 mm Large Flange Half Hexagonal Rivet Nuts
Technical Specifications
| Property | Specification |
|---|---|
Description | 0.5 - 3 mm Large Flange Half Hexagonal Steel Hexsert Rivet Nuts |
Product family | Hexsert |
Material | Steel |
Open / Closed | Open |
Head Style | Large Flange |
Body Style | Half Hexagonal |
Thread | M6 |
Min grip mm | 0.5 |
Max grip mm | 3.0 |
Min Hole Size mm | 9.0 |
Max Hole Size mm | 9.1 |
Nominal Body Length mm | 15.5 |
Max Flange Diameter mm | 13.2 |
Max Flange Thickness mm | 1.63 |
