SKU No : 07537-00200

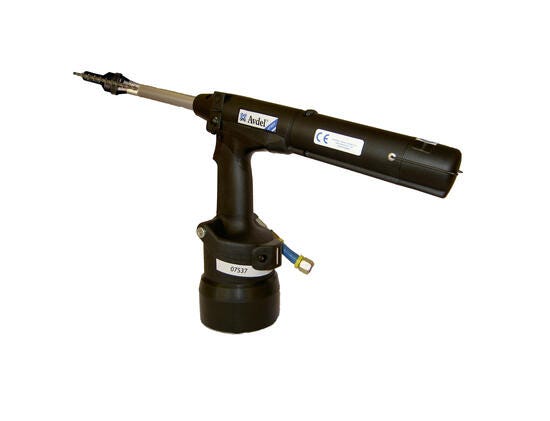

07537 speed tool with Mechanical Cursor

Product description :

The 753 tool may be the solution to all your Avdel® speed fastener placement needs. The 753 is a high-performance, hydropneumatic hand tool, designed for rapid, blind-side installation of the Avdel® Speed Fastening® System. The 753 tool is the only one you need to place the whole range of Avdel® speed fasteners, apart from the 1.6 mm Avlug® which uses our 7536 tool. The 753 can fit 1500 fasteners per hour with the ability to work in hard-to-reach areas. Plus, the 753 has an extensive range of options to meet individual assembly needs.

Technical Specifications

PropertySpecification
Height
295 mm
Width
110 mm
Length
475 mm
Weight
2.3 kG
Brand
SAT
Cycle time
Vibration
Pull force
3.89 kN
Stroke
28 mm
Minimum aluminium fastener size
2.4 mm
Minimum steel fastener size
2.4 mm
Minimum stainless steel fastener size
2.4 mm
Maximum aluminium fastener size
4.8 mm
Maximum steel fastener size
4.8 mm
Maximum stainless steel fastener size
4.8 mm
