Blind FasteningStructuralMonoboltMonobolt 4.8mm [3/16] (6) Steel / Steel Structural Rivet Nuts
SKU No : 02761-00619

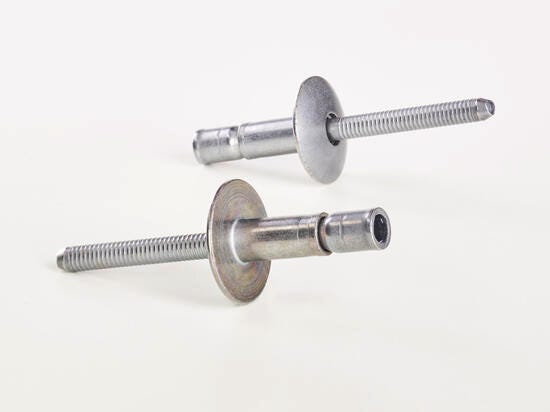

Monobolt 4.8mm [3/16] (6) Steel / Steel Structural Rivet Nuts

Product description :

3.18-12.22 mm grip with 4.8mm [3/16] (6) Nominal Diameter based on Countersunk Head Style with Steel Body material and Steel Mandrel material

Technical Specifications

PropertySpecification
product name
3.175-12.2174 mm Steel/Steel Monobolt Structural Blind Rivets
nominal Diameter
4.8mm [3/16] (6)
Body Material
Steel
Mandrel Material
Steel
Finish-Body
Zinc Plate, Hex-Free, Clear Trivalent Passivate
Finish- Mandrel
Zinc Plate, Hex-Free, Clear Trivalent Passivate
Head Style
Countersunk
Min grip mm
3.18
Max grip mm
12.22
Min Grip Inches
0.125
Max Grip Inches
0.481
Min Hole Size mm
4.9
Max Hole Size mm
5.1
Min Holes Size Inches
0.193
Max Hole Size Inches
0.2007
Max Body Length mm
15.9
Max Body Length Inches
0.626
Max Secondary Protrusion mm
26.21
Max Secondary Protrusion inches
1.032
Flange Diameter mm
0.0
Flange Diameter inches
0.0
Flange Thickness mm
2.13
Flange Thickness Inches
0.084
Shear lbf
1450
Tensile lbf
1150
Brand
Avdel
