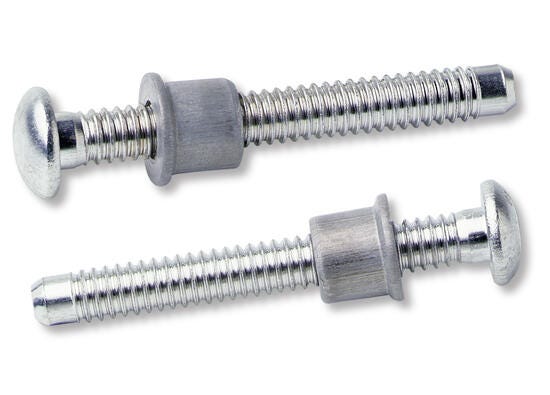

LockboltsLockbolt FastenersMaxlokAVDEL Aluminum Lockbolts with 6.4mm [1/4] (8) nominal diameter with 1.57 - 15.88 mm grip range
SKU No : 01921-00810

AVDEL Aluminum Lockbolts with 6.4mm [1/4] (8) nominal diameter with 1.57 - 15.88 mm grip range

Product description :

1.57-15.88 mm grip with 6.4mm [1/4] (8) Nominal Diameter based on Brazier Head head style and Aluminum Pin Material

Technical Specifications

PropertySpecification
nominal Diameter
6.4mm [1/4] (8)
Pin Material
Aluminum
Head Style
Brazier Head
Min grip mm
1.57
Max grip mm
15.88
Min Grip Inches
0.062
Max Grip Inches
0.625
Min Hole Size mm
6.73
Max Hole Size mm
6.73
Max Hole Size Inches
0.265
Head Diameter mm
13.34
Head Diameter inches
0.525
Head Thickness mm
4.11
Head Thickness Inches
0.162
Shear kN
7.45
Tensile kN
9.79
Shear lbf
1675.0
Tensile lbf
2200.0
Full Collar Part No.
01985-00800
Body Length mm
0.0
