SKU No : 01921-00620

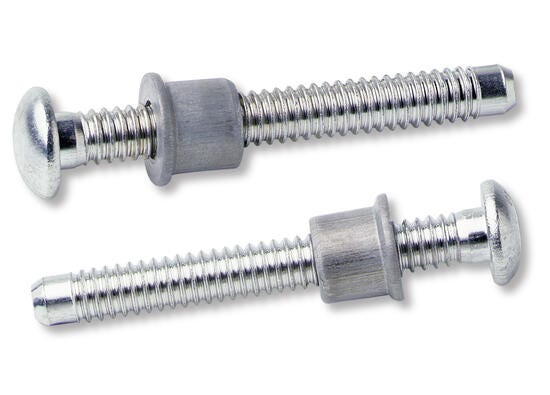

AVDEL Aluminum Lockbolts with 4.8mm [3/16] (6) nominal diameter with 7.92 - 31.75 mm grip range
Product description :
7.92-31.75 mm grip with 4.8mm [3/16] (6) Nominal Diameter based on Brazier Head head style and Aluminum Pin Material
Technical Specifications
| Property | Specification |
|---|---|
nominal Diameter | 4.8mm [3/16] (6) |
Pin Material | Aluminum |
Head Style | Brazier Head |
Min grip mm | 7.92 |
Max grip mm | 31.75 |
Min Grip Inches | 0.312 |
Max Grip Inches | 1.25 |
Min Hole Size mm | 5.26 |
Max Hole Size mm | 5.16 |
Max Hole Size Inches | 0.203 |
Head Diameter mm | 10.01 |
Head Diameter inches | 0.394 |
Head Thickness mm | 3.38 |
Head Thickness Inches | 0.133 |
Shear kN | 4.23 |
Tensile kN | 5.78 |
Shear lbf | 950.0 |
Tensile lbf | 1300.0 |
Full Collar Part No. | 01985-00600 |
Body Length mm | 0.0 |
