LockboltsLockbolt FastenersMaxlokAVDEL Steel Lockbolts with 4.8mm [3/16] (6) nominal diameter with 1.57 - 15.88 mm grip range
SKU No : 01903-70620

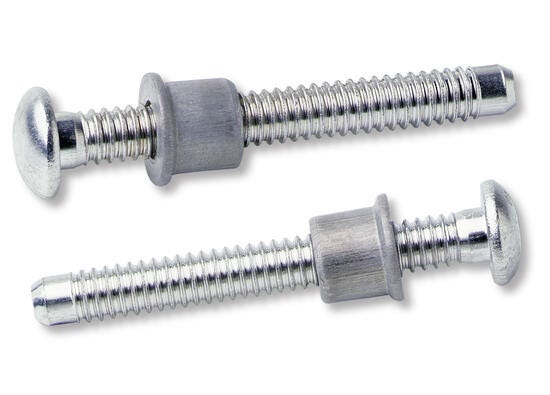

AVDEL Steel Lockbolts with 4.8mm [3/16] (6) nominal diameter with 1.57 - 15.88 mm grip range

Product description :

1.57-15.88 mm grip with 4.8mm [3/16] (6) Nominal Diameter based on Mushroom Head head style and Steel Pin Material

Technical Specifications

PropertySpecification
nominal Diameter
4.8mm [3/16] (6)
Pin Material
Steel
Head Style
Mushroom Head
Min grip mm
1.57
Max grip mm
15.88
Min Grip Inches
0.062
Max Grip Inches
0.625
Min Hole Size mm
5.16
Max Hole Size mm
5.16
Max Hole Size Inches
0.203
Head Diameter mm
12.47
Head Diameter inches
0.491
Head Thickness mm
2.82
Head Thickness Inches
0.111
Shear kN
8.25
Tensile kN
10.01
Shear lbf
1855.0
Tensile lbf
2250.0
Full Collar Part No.
01981-70600
Body Length mm
0.0
