Briv

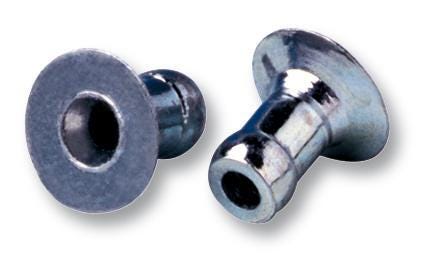

Briv 4.8 mm A2 Stainless Speed Fastener
SKU No
:
01841-00611
Briv 4.8 mm A2 Stainless Speed Fastener
Product description :
4.95-6.48 mm grip with 4.8 Nominal Diameter with 4.85-4.93 mm Hole Size and A2 Stainless Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
4.8
nominal Diameter
A2 Stainless
Material
Brand
Polished
Finish
4.95
Min grip mm
6.48
Max grip mm
Min Grip Inches
0.19
Max Grip Inches
0.2551181102362205
Min Hole Size mm
4.85
Max Hole Size mm
4.93
Min Holes Size Inches
0.19094488188976377
Max Hole Size Inches
0.19409448818897637
Body Length mm
8.64
Body Length Inches
0.3401574803149607
Max Secondary Protrusion mm
4.77
Max Secondary Protrusion inches
0.18779527559055118
Flange Diameter mm
9.71
Flange Diameter inches
0.3822834645669292
Flange Thickness mm
1.17
Flange Thickness Inches
0.046062992125984255
Shear kN
3.56
Tensile kN
5.12
Shear lbf
800.3236
Tensile lbf
1151.0272
Fasteners per Pod
31
Show more Specifications
