Blind FasteningSpeed FasteningBrivBriv 4.8 mm A2 Stainless Speed Fastener
SKU No : 01841-00609

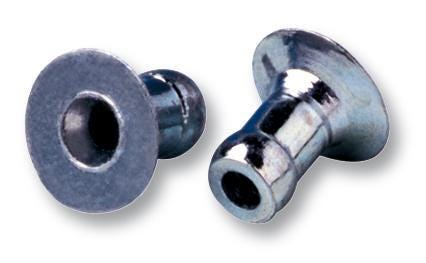

Briv 4.8 mm A2 Stainless Speed Fastener

Product description :

3.68-5.21 mm grip with 4.8 Nominal Diameter with 4.85-4.93 mm Hole Size and A2 Stainless Material

Technical Specifications

PropertySpecification
Brand
Avdel
nominal Diameter
4.8
Material
A2 Stainless
Finish
Polished
Min grip mm
3.68
Max grip mm
5.21
Min Grip Inches
0.14
Max Grip Inches
0.20511811023622048
Min Hole Size mm
4.85
Max Hole Size mm
4.93
Min Holes Size Inches
0.19094488188976377
Max Hole Size Inches
0.19409448818897637
Body Length mm
7.37
Body Length Inches
0.29015748031496064
Max Secondary Protrusion mm
4.77
Max Secondary Protrusion inches
0.18779527559055118
Flange Diameter mm
9.71
Flange Diameter inches
0.3822834645669292
Flange Thickness mm
1.17
Flange Thickness Inches
0.046062992125984255
Shear kN
3.56
Tensile kN
5.12
Shear lbf
800.3236
Tensile lbf
1151.0272
Fasteners per Pod
35
