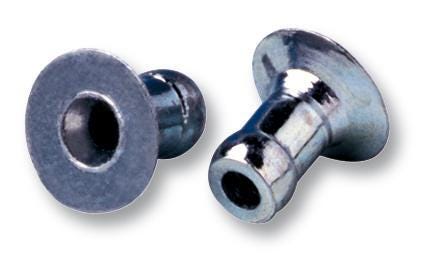

Briv 4 mm A2 Stainless Speed Fastener
SKU No
:
01841-00509
Briv 4 mm A2 Stainless Speed Fastener
Product description :
3.68-4.96 mm grip with 4 Nominal Diameter with 3.97-4.04 mm Hole Size and A2 Stainless Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
4.0
nominal Diameter
A2 Stainless
Material
Brand
Polished
Finish
3.68
Min grip mm
4.96
Max grip mm
Min Grip Inches
0.14
Max Grip Inches
0.1952755905511811
Min Hole Size mm
3.97
Max Hole Size mm
4.04
Min Holes Size Inches
0.15629921259842522
Max Hole Size Inches
0.15905511811023623
Body Length mm
6.94
Body Length Inches
0.2732283464566929
Max Secondary Protrusion mm
3.87
Max Secondary Protrusion inches
0.15236220472440945
Flange Diameter mm
8.18
Flange Diameter inches
0.3220472440944882
Flange Thickness mm
0.99
Flange Thickness Inches
0.03897637795275591
Shear kN
2.45
Tensile kN
3.6
Shear lbf
550.7845000000001
Tensile lbf
809.316
Fasteners per Pod
38
Show more Specifications
