Blind FasteningSpeed FasteningBrivBriv 3.2 mm Steel Speed Fastener
SKU No : 01821-00416

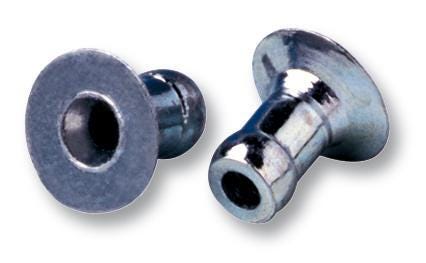

Briv 3.2 mm Steel Speed Fastener

Product description :

7.24-8.51 mm grip with 3.2 Nominal Diameter with 3.26-3.34 mm Hole Size and Steel Material

Technical Specifications

PropertySpecification
Brand
Avdel
nominal Diameter
3.2
Material
Steel
Finish
Zinc plated clear passivated
Min grip mm
7.24
Max grip mm
8.51
Min Grip Inches
0.29
Max Grip Inches
0.3350393700787402
Min Hole Size mm
3.26
Max Hole Size mm
3.34
Min Holes Size Inches
0.1283464566929134
Max Hole Size Inches
0.131496062992126
Body Length mm
10.46
Body Length Inches
0.4118110236220473
Max Secondary Protrusion mm
3.17
Max Secondary Protrusion inches
0.12480314960629922
Flange Diameter mm
6.53
Flange Diameter inches
0.25708661417322837
Flange Thickness mm
0.99
Flange Thickness Inches
0.03897637795275591
Shear kN
1.13
Tensile kN
1.82
Shear lbf
254.03529999999998
Tensile lbf
409.1542
Fasteners per Pod
26
