Blind FasteningSpeed FasteningRivscrewRivscrew 3.5 mm Steel Speed Fastener
SKU No : 01722-03512

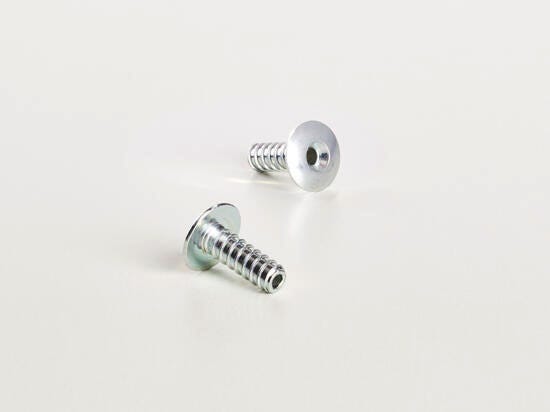

Rivscrew 3.5 mm Steel Speed Fastener

Product description :

1.62-7.8 mm grip with 3.5 Nominal Diameter with 3.1-3.17 mm Hole Size and Steel Material

Technical Specifications

PropertySpecification
Brand
Avdel
nominal Diameter
3.5
Material
Steel
Finish
Zinc plated clear passivated
Min grip mm
1.62
Max grip mm
7.8
Min Grip Inches
0.06
Max Grip Inches
0.30708661417322836
Min Hole Size mm
3.1
Max Hole Size mm
3.17
Min Holes Size Inches
0.1220472440944882
Max Hole Size Inches
0.12480314960629922
Body Length mm
9.0
Body Length Inches
0.35433070866141736
Max Secondary Protrusion mm
3.1
Max Secondary Protrusion inches
0.1220472440944882
Flange Diameter mm
6.1
Flange Diameter inches
0.24015748031496062
Flange Thickness mm
1.4
Flange Thickness Inches
0.05511811023622047
Shear kN
1
Tensile kN
1
Shear lbf
224.81
Tensile lbf
224.81
Fasteners per Pod
30
