Blind FasteningNon-StructuralMulti-GripAVDEL 3.2mm [1/8] Aluminum / Steel Multi-Grip Rivets
SKU No : 01692-00414

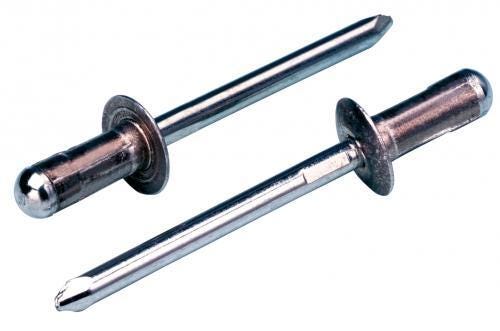

AVDEL 3.2mm [1/8] Aluminum / Steel Multi-Grip Rivets

Product description :

0-7.9248 mm Grip with 3.2 mm Nominal Diameter in Dome, Large Flange Head Style with Aluminum Body Material and Steel Mandrel Material

Technical Specifications

PropertySpecification
Product name
3.175 - 7.9248 Grip in Aluminum/Steel, Multi-Grip Non-Structural Blind Rivets
Nominal Diameter mm
3.2
Nominal Diameter Inches
3.2mm [1/8]
Body Material
Aluminum
Mandrel Material
Steel
Finish-Body
None
Finish- Mandrel
Zinc Plate, Trivalent Chromate
Head Style
Dome, Large Flange
Min grip mm
0.0
Max grip mm
7.924799999999999
Min Grip Inches
0.125
Max Grip Inches
0.312
Min Hole Size mm
3.3274
Max Hole Size mm
3.4544
Min Holes Size Inches
0.131
Max Hole Size Inches
0.136
Max Body Length mm
13.462
Max Body Length Inches
0.53
Flange Diameter mm Max
8.5598
Flange Diameter inches Max
0.337
Flange Thickness Inches Max
0.045
Shear lbf
165
Tensile lbf
230
