Blind FasteningNon-StructuralMulti-GripAVDEL 3.2mm [1/8] Aluminum / Steel Multi-Grip Rivets
SKU No : 01661-00412

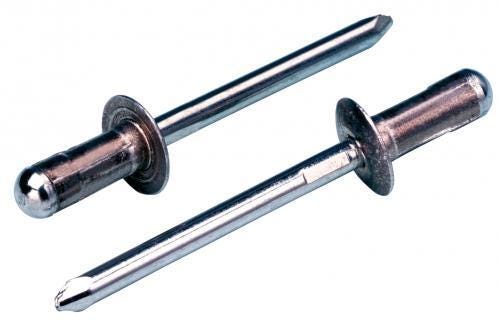

AVDEL 3.2mm [1/8] Aluminum / Steel Multi-Grip Rivets

Product description :

1.2-6.3 mm Grip with 3.2 mm Nominal Diameter in Dome Head Style with Aluminum Body Material and Steel Mandrel Material

Technical Specifications

PropertySpecification
Product name
1.2 - 6.3 Grip in Aluminum/Steel, Multi-Grip Non-Structural Blind Rivets
Nominal Diameter mm
3.2
Nominal Diameter Inches
3.2mm [1/8]
Body Material
Aluminum
Mandrel Material
Steel
Finish-Body
Plain
Finish- Mandrel
Zinc Plate
Head Style
Dome
Min grip mm
1.2
Max grip mm
6.3
Min Grip Inches
0.047244094488188976
Max Grip Inches
0.24803149606299213
Min Hole Size mm
3.25
Max Hole Size mm
3.38
Min Holes Size Inches
0.1279527559055118
Max Hole Size Inches
0.13307086614173227
Max Secondary Protrusion mm
12.0
Max Secondary Protrusion Inches
0.4724409448818898
Flange Diameter mm Max
6.66
Flange Diameter inches Max
0.26220472440944886
Flange Thickness mm Max
1.3
Shear kN
0.73
Tensile kN
1.02
