Blind FasteningNon-StructuralMulti-GripAVDEL 3.2mm [1/8] Aluminum / Steel Multi-Grip Rivets
SKU No : 01661-00410

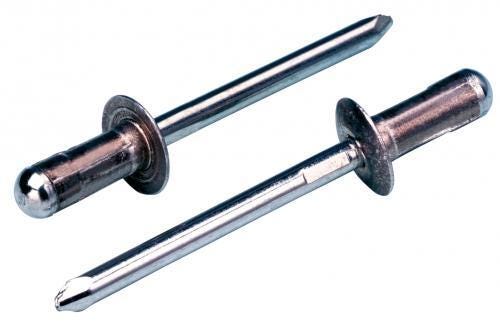

AVDEL 3.2mm [1/8] Aluminum / Steel Multi-Grip Rivets

Product description :

0.8-4.8 mm Grip with 3.2 mm Nominal Diameter in Dome Head Style with Aluminum Body Material and Steel Mandrel Material

Technical Specifications

PropertySpecification
Product name
0.8 - 4.8 Grip in Aluminum/Steel, Multi-Grip Non-Structural Blind Rivets
Nominal Diameter mm
3.2
Nominal Diameter Inches
3.2mm [1/8]
Body Material
Aluminum
Mandrel Material
Steel
Finish-Body
Plain
Finish- Mandrel
Zinc Plate
Head Style
Dome
Min grip mm
0.8
Max grip mm
4.8
Min Grip Inches
0.03149606299212599
Max Grip Inches
0.1889763779527559
Min Hole Size mm
3.25
Max Hole Size mm
3.38
Min Holes Size Inches
0.1279527559055118
Max Hole Size Inches
0.13307086614173227
Max Secondary Protrusion mm
10.4
Max Secondary Protrusion Inches
0.40944881889763785
Flange Diameter mm Max
6.66
Flange Diameter inches Max
0.26220472440944886
Flange Thickness mm Max
1.3
Shear kN
0.73
Tensile kN
1.02
