Blind FasteningNon-StructuralMulti-GripAVDEL 4.0mm [5/32] Aluminum / Steel Multi-Grip Rivets
SKU No : 01604-00514

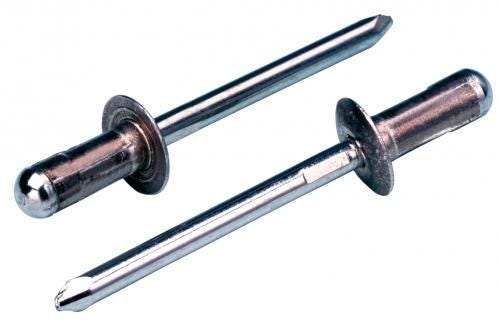

AVDEL 4.0mm [5/32] Aluminum / Steel Multi-Grip Rivets

Product description :

2.8-7.9 mm Grip with 4 mm Nominal Diameter in Countersunk Head Style with Aluminum Body Material and Steel Mandrel Material

Technical Specifications

PropertySpecification
Product name
2.8 - 7.9 Grip in Aluminum/Steel, Multi-Grip Non-Structural Blind Rivets
Nominal Diameter Inches
4.0mm [5/32]
Body Material
Aluminum
Mandrel Material
Steel
Finish-Body
Plain
Finish- Mandrel
Zinc Plate
Head Style
Countersunk
Min grip mm
2.8
Max grip mm
7.9
Min Grip Inches
0.11023622047244094
Max Grip Inches
0.31102362204724415
Min Hole Size mm
4.09
Max Hole Size mm
4.2
Min Holes Size Inches
0.1610236220472441
Max Hole Size Inches
0.16535433070866143
Max Secondary Protrusion mm
14.3
Max Secondary Protrusion Inches
0.5629921259842521
Flange Diameter mm Max
6.6
Flange Diameter inches Max
0.25984251968503935
Flange Thickness mm Max
1.4
Flange Thickness Inches Max
0.05511811023622047
Shear kN
1.13
Tensile kN
1.33
