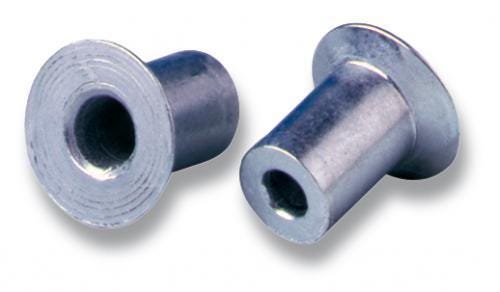

Chobert 4 mm Aluminium Speed Fastener
SKU No
:
01125-00510
Chobert 4 mm Aluminium Speed Fastener
Product description :
4.75-6.35 mm grip with 4 Nominal Diameter with 4.09-4.16 mm Hole Size and Aluminium Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
4.0
nominal Diameter
Aluminium
Material
Brand
natural
Finish
4.75
Min grip mm
6.35
Max grip mm
Min Grip Inches
0.19
Max Grip Inches
0.25
Min Hole Size mm
4.09
Max Hole Size mm
4.16
Min Holes Size Inches
0.1610236220472441
Max Hole Size Inches
0.16377952755905514
Body Length mm
7.92
Body Length Inches
0.31181102362204727
Max Secondary Protrusion mm
4.06
Max Secondary Protrusion inches
0.15984251968503937
Flange Diameter mm
6.53
Flange Diameter inches
0.25708661417322837
Flange Thickness mm
1.48
Flange Thickness Inches
0.05826771653543307
Shear kN
1
Tensile kN
No value
Shear lbf
224.81
Tensile lbf
No value
Fasteners per Pod
31
