Blind FasteningSpeed FasteningChobertChobert 4 mm Aluminium Speed Fastener
SKU No : 01125-00508

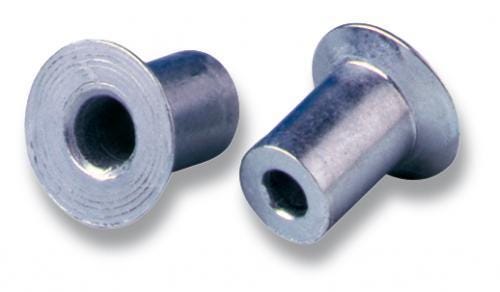

Chobert 4 mm Aluminium Speed Fastener

Product description :

3.17-4.75 mm grip with 4 Nominal Diameter with 4.09-4.16 mm Hole Size and Aluminium Material

Technical Specifications

PropertySpecification
Brand
Avdel
nominal Diameter
4.0
Material
Aluminium
Finish
natural
Min grip mm
3.17
Max grip mm
4.75
Min Grip Inches
0.12
Max Grip Inches
0.18700787401574803
Min Hole Size mm
4.09
Max Hole Size mm
4.16
Min Holes Size Inches
0.1610236220472441
Max Hole Size Inches
0.16377952755905514
Body Length mm
6.35
Body Length Inches
0.25
Max Secondary Protrusion mm
4.06
Max Secondary Protrusion inches
0.15984251968503937
Flange Diameter mm
6.53
Flange Diameter inches
0.25708661417322837
Flange Thickness mm
1.48
Flange Thickness Inches
0.05826771653543307
Shear kN
1
Tensile kN
No value
Shear lbf
224.81
Tensile lbf
No value
Fasteners per Pod
38
