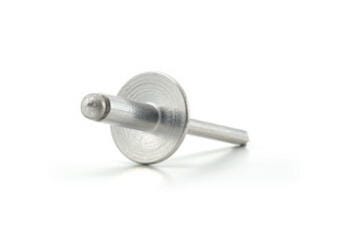

POP 4.0mm [5/32] Stainless Steel / Steel Open End Rivets
SKU No
:
SSD56BS
POP 4.0mm [5/32] Stainless Steel / Steel Open End Rivets
Product description :
6.3754-9.525 mm Grip with 4 mm Nominal Diameter in Dome Head Style with Stainless Steel Body Material and Steel Mandrel Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
6.3754 - 9.525 Grip in Stainless Steel/Steel, Open End Non-Structural Blind Rivets
Product name
4
Nominal Diameter mm
Brand
4.0mm [5/32]
Nominal Diameter Inches
Stainless Steel
Body Material
Steel
Mandrel Material
Finish-Body
Plain
Finish- Mandrel
Plain or Protective Coat
Head Style
Dome
Min grip mm
6.3754
Max grip mm
9.525
Min Grip Inches
0.251
Max Grip Inches
0.375
Min Hole Size mm
4.064
Max Hole Size mm
4.16
Min Holes Size Inches
0.16
Max Hole Size Inches
0.164
Max Body Length mm
13.716000000000001
Max Body Length Inches
0.54
Max Secondary Protrusion mm
17.272
Max Secondary Protrusion Inches
0.68
Flange Diameter mm Max
8.3312
Flange Diameter inches Max
0.328
Flange Thickness mm Max
1.1938
Flange Thickness Inches Max
0.047
Shear kN
4.00339945373445
Tensile kN
5.026490425244366
Shear lbf
900
Tensile lbf
1130
