Vibration Resistant Threaded FastenersSpiralock NutsFlange NutsSpiralock M6 x 1.0 Metric Stainless Steel Hex Flange Nuts
SKU No : M06100MStSl316

Spiralock M6 x 1.0 Metric Stainless Steel Hex Flange Nuts

Product description :

Spiralock M6 x 1.0 Metric Stainless Steel Hex Flange Nuts

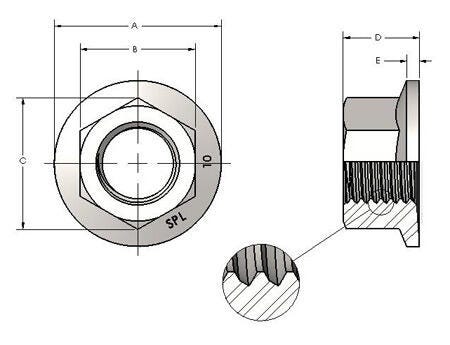

Technical Specifications

PropertySpecification
Thread Size
M6 x 1.0 Metric
Brand
Spiralock
Flange Diameter Max
14.2 mm
Flange Diameter Min
14.2 mm
Across Flats Max
10 mm
Across Flats Min
9.78 mm
Across Corners Max
11.55 mm
Across Corners Min
11.05 mm
Nut Thickness Max
6 mm
Nut Thickness Min
5.7 mm
Flange Edge Thickness
1.1 mm
