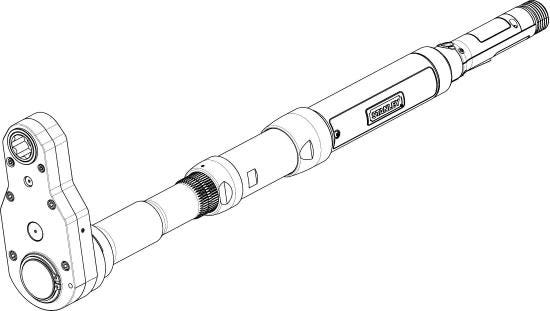

EB55LC902-225 EB Series Transducerized Nutrunner

Product description :

EB55LC902-225 Lever Start Corded Nutrunner With The Following Features: - Rated For 22.5 - 225 NM With A Recomended Working Range Of 45 - 180 NM - 35-341 RPM - 19 lb Tool Weight - Crowfoot Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeCrowfoot

Recommended Working Range45 - 180 NM

Useful Tool Range22.5 - 225 NM

Max Torque225.0

Min Speed (RPM)35.0

Max Speed (RPM)341.0
