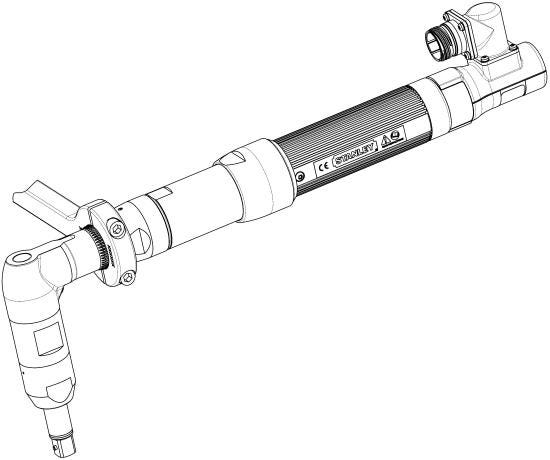

EB34MA19F1-70 EB Series Transducerized Nutrunner

Product description :

EB34MA19F1-70 Fixtured Corded Nutrunner With The Following Features: - Rated For 7 - 70 NM With A Recomended Working Range Of 14 - 56 NM - 61-610 RPM - 8 lb Tool Weight - Right Angle Output with 38mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Mult Handle For Remote Start Operation- 1 Inch Retraction

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Fixtured

Handle Type

Output TypeRight Angle

Recommended Working Range14 - 56 NM

Useful Tool Range7 - 70 NM

Max Torque70.0

Min Speed (RPM)61.0

Max Speed (RPM)610.0
