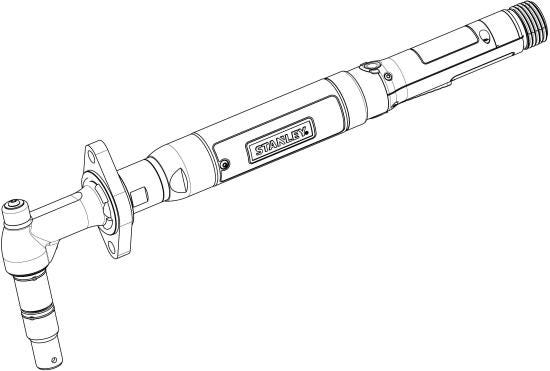

EB33LH18V2-46 EB Series Transducerized Nutrunner

Product description :

EB33LH18V2-46 Lever Start Corded Nutrunner With The Following Features: - Rated For 4.6 - 46 NM With A Recomended Working Range Of 9.2 - 36.8 NM - 88-880 RPM - 5 lb Tool Weight - Hold-n-Drive Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle- 2 Inch Retraction

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeHold-n-Drive

Recommended Working Range9.2 - 36.8 NM

Useful Tool Range4.6 - 46 NM

Max Torque46.0

Min Speed (RPM)88.0

Max Speed (RPM)880.0
