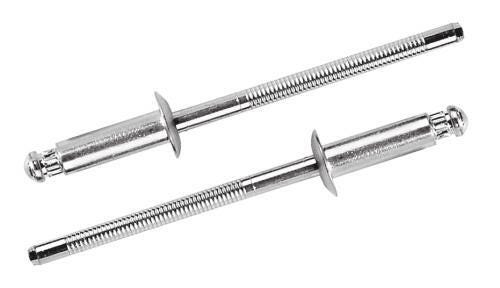

Q Rivet 6.4mm [1/4] (8) Stainless Steel / Stainless Steel Structural Rivet Nuts
SKU No
:
CCPQ-08-08
Q Rivet 6.4mm [1/4] (8) Stainless Steel / Stainless Steel Structural Rivet Nuts
Product description :
9.55-12.7 mm grip with 6.4mm [1/4] (8) Nominal Diameter based on Dome Head Style with Stainless Steel Body material and Stainless Steel Mandrel material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
9.5504-12.7 mm Stainless Steel/Stainless Steel Q Rivet Structural Blind Rivets
product name
6.4mm [1/4] (8)
nominal Diameter
Brand
Stainless Steel
Body Material
Stainless Steel
Mandrel Material
None
Finish-Body
Finish- Mandrel
None
Head Style
Dome
Min grip mm
9.55
Max grip mm
12.7
Min Grip Inches
0.376
Max Grip Inches
0.5
Min Hole Size mm
6.53
Max Hole Size mm
6.63
Min Holes Size Inches
0.257
Max Hole Size Inches
0.261
Max Body Length mm
19.05
Max Body Length Inches
0.75
Max Secondary Protrusion mm
27.05
Max Secondary Protrusion inches
1.065
Flange Diameter mm
13.34
Flange Diameter inches
0.525
Flange Thickness mm
1.96
Flange Thickness Inches
0.077
Shear lbf
2450
Tensile lbf
2250
