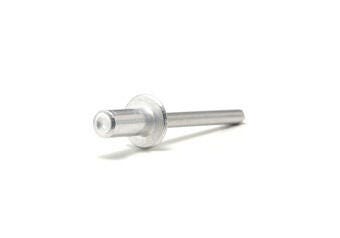

POP 4.8mm [3/16] Aluminum / Stainless Steel Closed End Rivets
SKU No
:
AD64SSH
POP 4.8mm [3/16] Aluminum / Stainless Steel Closed End Rivets
Product description :
4.7752-6.35 mm Grip with 4.8 mm Nominal Diameter in Dome Head Style with Aluminum Body Material and Stainless Steel Mandrel Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
4.7752 - 6.35 Grip in Aluminum/Stainless Steel, Closed End Non-Structural Blind Rivets
Product name
4.8
Nominal Diameter mm
Brand
4.8mm [3/16]
Nominal Diameter Inches
Aluminium
Body Material
Stainless Steel
Mandrel Material
Finish-Body
Plain
Finish- Mandrel
Plain
Head Style
Dome
Min grip mm
4.8
Max grip mm
6.4
Min Grip Inches
0.188
Max Grip Inches
0.25
Min Hole Size mm
4.88
Max Hole Size mm
4.98
Min Holes Size Inches
0.192
Max Hole Size Inches
0.196
Max Body Length mm
11.95
Max Body Length Inches
0.47
Max Secondary Protrusion mm
11.95
Max Secondary Protrusion Inches
0.47
Flange Diameter mm Max
10.0
Flange Diameter inches Max
0.393
Flange Thickness mm Max
2.1
Flange Thickness Inches Max
0.081
Shear kN
2.53
Tensile kN
3.7
Shear lbf
575
Tensile lbf
840
