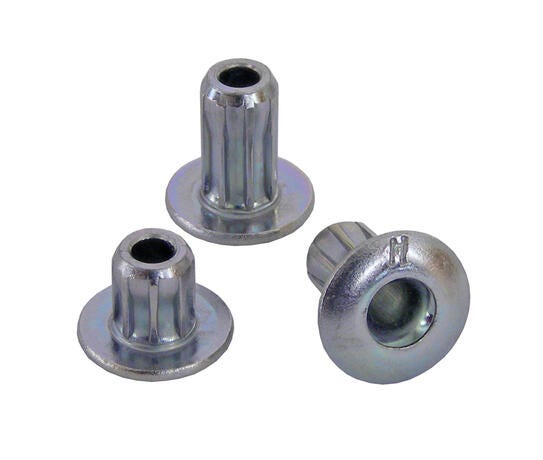

NeoSpeed 4 mm Steel Speed Fastener
SKU No
:
57121-04007
NeoSpeed 4 mm Steel Speed Fastener
Product description :
0.5-5 mm grip with 4 Nominal Diameter with 4.1-4.43 mm Hole Size and Steel Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
4.0
nominal Diameter
Steel
Material
Brand
Zinc clear passivated
Finish
0.5
Min grip mm
5.0
Max grip mm
Min Grip Inches
0.02
Max Grip Inches
0.1968503937007874
Min Hole Size mm
4.1
Max Hole Size mm
4.43
Min Holes Size Inches
0.16141732283464566
Max Hole Size Inches
0.17440944881889764
Body Length mm
8.0
Body Length Inches
0.31496062992125984
Max Secondary Protrusion mm
3.9
Max Secondary Protrusion inches
0.15354330708661418
Flange Diameter mm
8.18
Flange Diameter inches
0.3220472440944882
Flange Thickness mm
1.25
Flange Thickness Inches
0.04921259842519685
Shear kN
2
Tensile kN
3
Shear lbf
449.62
Tensile lbf
674.4300000000001
Fasteners per Pod
33
