Nelson Stud Welding
Reduced Base

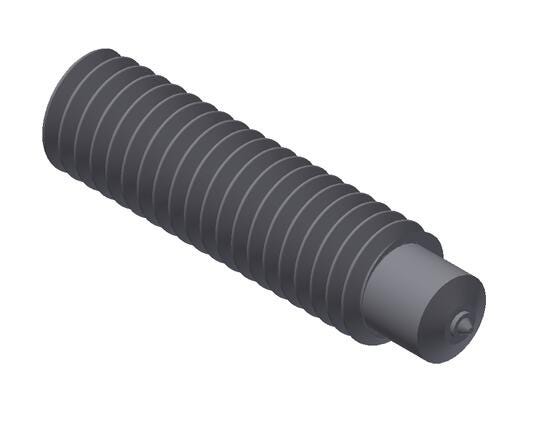

CJL - Coarse reduced base, solid flux
CJL 5/16-18 X 1 1/2 MS
SKU No
:
102014105
CJL 5/16-18 X 1 1/2 MS
Product description :
CJL 5/16-18 X 1 1/2 MS
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
0.312 inches
Height
0.312 inches
Width
Brand
1.5 inches
Length
0.019 Lb
Weight
Low Carbon Steel
Material (O)
Stud Dia
0.312 inches
Weld Base Dia
0.218 inches
Overall Length
1.5 inches
Weld Base Length
0.203 inches
Burn Off
0.093 inches
Thread Size
5/16-18 UN/UNF
Flash Dia
0.343 inches
Flash Thickness
0.093 inches
Related Ferrule
100101024.0
Related Chuck
500001009.0
Related Grip
501001006.0
Related Foot
502001137.0
Related HD Foot
502001001.0
