Collared (Stand-off) Studs

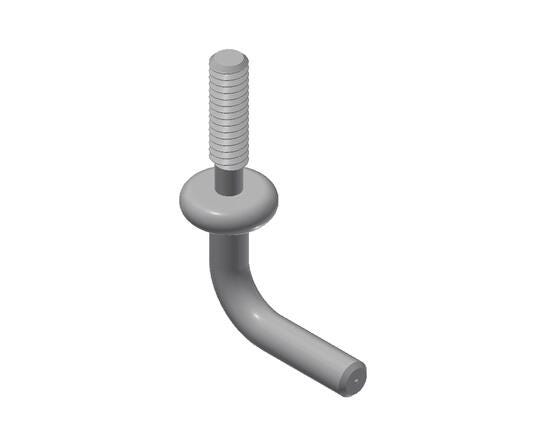

B5L - 90° Bent Collar
B5L 3/8 X 5/8 HY80 1 1/2 EXT
SKU No
:
101006120
B5L 3/8 X 5/8 HY80 1 1/2 EXT
Product description :
B5L 3/8 X 5/8 HY80 1 1/2 EXT
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
0.625 inches
Height
2 inches
Width
Brand
0.9375 inches
Length
0.096 Lb
Weight
HY80 Steel
Material (O)
Stud Dia
0.375 inches
Weld Base Dia
0.375 inches
Collar Dia
0.625 inches
Head Thickness
0.1 inches
Burn Off
0.125 inches
Base Length
0.625 inches
Extension
1.25 inches
Bend Radius
0.218 inches
Bend Angle
90.0
Thread Size
3/8/-16 UN/UNF
Thread Length
0.562 inches
Related Ferrule
100101101.0
Related Chuck
500009014.0
Related Foot
501006007.0
