Briv

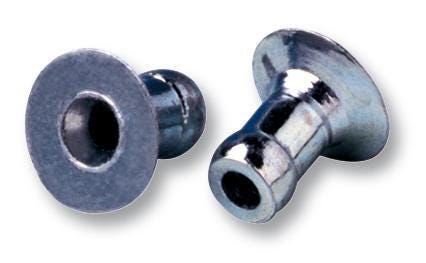

Briv 4.8 mm Steel Speed Fastener
SKU No
:
01821-00606
Briv 4.8 mm Steel Speed Fastener
Product description :
1.65-3.3 mm grip with 4.8 Nominal Diameter with 4.85-4.93 mm Hole Size and Steel Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
4.8
nominal Diameter
Steel
Material
Brand
Zinc plated clear passivated
Finish
1.65
Min grip mm
3.3
Max grip mm
Min Grip Inches
0.06
Max Grip Inches
0.12992125984251968
Min Hole Size mm
4.85
Max Hole Size mm
4.93
Min Holes Size Inches
0.19094488188976377
Max Hole Size Inches
0.19409448818897637
Body Length mm
5.39
Body Length Inches
0.21220472440944882
Max Secondary Protrusion mm
4.79
Max Secondary Protrusion inches
0.18858267716535435
Flange Diameter mm
9.71
Flange Diameter inches
0.3822834645669292
Flange Thickness mm
1.17
Flange Thickness Inches
0.046062992125984255
Shear kN
2.25
Tensile kN
3.71
Shear lbf
505.8225
Tensile lbf
834.0451
Fasteners per Pod
46
Show more Specifications
